1995
VR40 AU |
1995
VR40 BU |
1995
VR40 EU |
1995
VR40 FU |
1996
R-40A |
1996
R-40B |
1996
R-40E |
1996
R-40F |

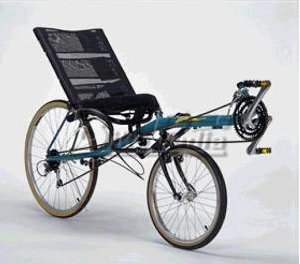

1997
R 40 A E (1) |
1997
R 40 A E (2) |
1997
R 40 B F (1) |
1997
R 40 B F (2) |
1998
VR40 Std. |
1998
VR40 Susp. |
1999
VR40 Std. |
1999
VR40 Susp. |
2001
VR40 |

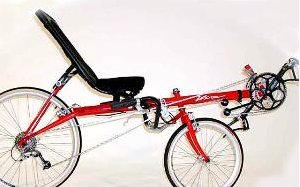

2002
VR40 |

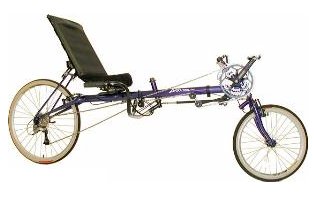

2003
R40 MWB |

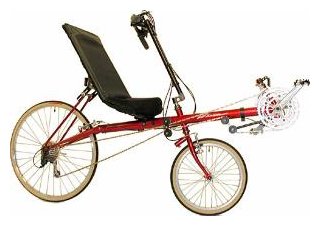

2003
R40 SWB
Compact |

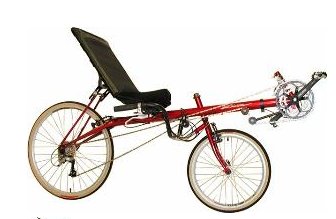

2003
R40 SWB
Standard |
| Photo |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
 |
 |
 |
 |
| MSRP |
$995.00 |
$1,125.00 |
$995.00 |
$1,150.00 |
$995.00 |
$1,150.00 |
$1,050.00 |
$1,175.00 |
$1,025.00 |
$1,050.00 |
$1,150.00 |
$1,175.00 |
$1,050.00 |
$1,295.00 |
$1,095.00 |
$1,295.00 |
$1,095.00 |
$1,095.00 |
NA |
NA |
NA |
| Weight |
29.0 |
31.0 |
29.0 |
31.0 |
29.5 |
31.5 |
29.5 |
31.5 |
29.5 |
29.5 |
32.0 |
32.0 |
29.5 |
30.5 |
29.5 |
29.5 |
30.5 |
30.5 |
34.0 |
30.5 |
30.5 |
| Sizes |
Adjustable for 5'1" to 6'8" |
Adjustable for 5'1" to 6'8" |
Adjustable for 5'1" to 6'8" |
Adjustable for 5'1" to 6'8" |
Adjustable for rider height:5' to 6'7" |
Adjustable for rider height:5' to 6'7" |
Adjustable for rider height:5' to 6'7" |
Adjustable for rider height:5' to 6'7" |
Adjustable for rider height |
Adjustable for rider height |
Adjustable for rider height |
Adjustable for rider height |
Adjustable for rider height |
Adjustable for rider height |
Adjustable for rider height |
Adjustable for rider height |
Small, standard, xlarge |
Small, standard, xlarge |
NA |
NA |
NA |
| Colors |
Teal, burgundy |
Teal, burgundy |
Teal, burgundy |
Teal, burgundy |
Burgundy, teal |
Burgundy, teal |
Burgundy, teal |
Burgundy, teal |
Burgundy, metallic teal |
Burgundy, metallic teal |
Burgundy, metallic teal |
Burgundy, metallic teal |
Metallic teal, red |
Metallic teal, red |
Metallic Blue, Red |
Metallic Blue, Red |
Blue, Red |
Blue, Red |
Empire Blue, Tango Red |
Empire Blue, Tango Red |
Empire Blue, Tango Red |
| Frame Construction |
TIG-welded steel |
TIG-welded steel |
TIG-welded steel |
TIG-welded steel |
TIG-welded steel |
TIG-welded steel |
TIG-welded steel |
TIG-welded steel |
TIG-welded |
TIG-welded |
TIG-welded |
TIG-welded |
TIG-welded |
TIG-welded |
TIG-welded |
TIG-welded |
Brazed/welded |
Brazed/welded |
TIG-welded |
|
|
| Frame Tubing Material |
Chromoly / hi-tensile steel |
Chromoly / hi-tensile steel |
Chromoly / hi-tensile steel |
Chromoly / hi-tensile steel |
Chromoly/hi-tensile steel |
Chromoly/hi-tensile steel |
Chromoly/hi-tensile steel |
Chromoly/hi-tensile steel |
4130 chromoly |
4130 chromoly |
4130 chromoly |
4130 chromoly |
2" DOM cromoly |
2" DOM cromoly |
Chromoly |
Chromoly |
Chromoly |
Chromoly |
Chromoly |
Chromoly |
Chromoly |
| Fork Brand & Model |
Custom |
Custom |
Custom |
Custom |
Vision |
Vision |
Vision |
Vision |
Vision |
Vision |
Vision |
Vision |
Rigid or Ballistic suspension |
Rigid or Ballistic suspension |
Vision |
Vision |
ATP |
ATP |
Vision |
Vision |
Vision |
| Fork Material |
Chromoly, unicrown crown |
Chromoly, unicrown crown |
Chromoly, unicrown crown |
Chromoly, unicrown crown |
Hi-tensile steel, unicrown crown |
Hi-tensile steel, unicrown crown |
Hi-tensile steel, unicrown crown |
Hi-tensile steel, unicrown crown |
4130 chromoly, sloping crown |
4130 chromoly, sloping crown |
4130 chromoly, sloping crown |
4130 chromoly, sloping crown |
Unspecified |
Unspecified |
Chromoly, unicrown crown |
Chromoly, unicrown crown |
Chromoly, semi-sloping crown |
Chromoly, semi-sloping crown |
Chromoly, unicrown crown |
Chromoly, unicrown crown |
Chromoly, unicrown crown |
| Rear Shock |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
Cane Creek, 3.5" travel |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
| Component Group |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano RSX |
Shimano RSX |
Shimano RSX |
Shimano RSX |
Shimano RSX |
Shimano RSX |
Recumbent Mix |
Recumbent Mix |
Recumbent Mix |
Recumbent Mix |
Recumbent Mix |
Recumbent Mix |
Recumbent Mix |
| Brakeset |
Tektro 862A brakes, Tektro alloy levers |
Tektro 862A brakes, Tektro alloy levers |
Tektro 862A brakes, Tektro alloy levers |
Tektro 862A brakes, Tektro alloy levers |
Tektro 862A brakes, Tektro 360P levers |
Tektro 862A brakes, Tektro 360P levers |
Tektro 862A brakes, Tektro 360P levers |
Tektro 862A brakes, Tektro 360P levers |
Dia-Compe VC-2 brakes
Tektro RBP-286A levers |
Dia-Compe VC-2 brakes
Tektro RBP-286A levers |
Dia-Compe VC-2 brakes
Tektro RBP-286A levers |
Dia-Compe VC-2 brakes
Tektro RBP-286A levers |
Dia-Compe brakes, Tektro 361 levers |
Dia-Compe brakes, Dia-Compe levers |
Shimano STX-RC V-Brakes
Shimano STX-RC levers |
Shimano STX-RC V-Brakes
Shimano STX-RC levers |
Avid SD6 brakes, Shimano Deore LX RapidFire SL levers |
Avid Single Digit 3 brakes, Shimano Deore LX RapidFire SL levers |
Avid Single Digit 3 brakes, Shimano Deore levers |
Avid Single Digit 3 brakes, Shimano Deore levers |
Avid Single Digit 3 brakes, Shimano Deore levers |
| Shift Levers |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Grip Shift SRT-400 |
Sachs Power Grip Plus |
Sachs Power Grip Plus |
Sachs Power Grip Plus |
Sachs Power Grip Plus |
Shimano STX RapidFire SL |
Shimano STX RapidFire SL |
Shimano STX-RC RapidFire SL |
Shimano STX-RC RapidFire SL |
Shimano Deore LX RapidFire SL |
Shimano Deore LX RapidFire SL |
Shimano Deore RapidFire |
Shimano Deore RapidFire |
Shimano Deore RapidFire |
| Front Derailleur |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC-Comp, bottom-pull/clamp-on 28.6 mm |
Suntour XC-Comp, bottom-pull/clamp-on 28.6 mm |
Suntour XC-Comp, bottom-pull/clamp-on 28.6 mm |
Suntour XC-Comp, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull/clamp-on 28.6 mm |
Suntour XC Pro, bottom-pull |
Suntour XC Pro, bottom-pull |
Shimano RX-100, bottom-pull |
Shimano RX-100, bottom-pull |
Shimano Tiagra, bottom-pull/clamp-on 28.6mm |
Shimano FD-R443, bottom-pull/clamp-on 28.6mm |
Shimano FD-443-B |
Shimano FD-443-B |
Shimano FD-443-B |
| Rear Derailleur |
Shimano Alivio GS |
Shimano Alivio GS |
Shimano Alivio GS |
Shimano Alivio GS |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano RSX GS |
Shimano RSX GS |
Shimano RSX GS |
Shimano RSX GS |
Shimano RSX |
Shimano RSX |
Shimano RX-100 |
Shimano RX-100 |
Shimano Deore |
Shimano Deore |
Shimano Deore |
Shimano Deore |
Shimano Deore |
| Crankset |
Suntour XC Comp, 24/36/46 teeth |
Suntour XC Comp, 26/36/46 teeth |
Suntour XC Comp, 24/36/46 teeth |
Suntour XC Comp, 26/36/46 teeth |
Suntour XC-Ltd, 24/36/46 teeth |
Suntour XC-Ltd, 24/36/46 teeth |
Suntour XC-Ltd, 24/36/46 teeth |
Suntour XC-Ltd, 24/36/46 teeth |
Suntour XC Comp, 28/38/48 teeth |
Suntour XC Comp, 28/38/48 teeth |
Suntour XC Comp, 28/38/48 teeth |
Suntour XC Comp, 28/38/48 teeth |
Shimano, 24/36/46 teeth |
Suntour XC Ltd, 24/36/46 teeth |
Shimano RX-100, 30/42/52 teeth |
Shimano RX-100, 30/42/52 teeth |
1-piece 170mm, 30/42/52 teeth |
TruVativ Elita, 30/42/52 teeth |
TruVativ Elita, 30/42/52 teeth |
TruVativ Elita, 30/42/52 teeth |
TruVativ Elita, 30/42/52 teeth |
| Pedals |
SR/Suntour Low-Fat Sport |
SR/Suntour Low-Fat Sport |
SR/Suntour Low-Fat Sport |
SR/Suntour Low-Fat Sport |
Union 672 |
Union 672 |
Union 672 |
Union 672 |
Wellgo w/clips & straps |
Wellgo w/clips & straps |
Wellgo w/clips & straps |
Wellgo w/clips & straps |
Wellgo |
Wellgo |
Wellgo aluminum |
Wellgo aluminum |
Aluminum cage w/clips & straps |
Aluminum cage w/clips & straps |
Wellgo LU-897 |
Wellgo LU-897 |
Wellgo LU-897 |
| Bottom Bracket |
NA |
NA |
NA |
NA |
Shimano BB-CS11, 127.5 mm spindle |
Shimano BB-CS11, 127.5 mm spindle |
Shimano BB-CS11, 127.5 mm spindle |
Shimano BB-CS11, 127.5 mm spindle |
Shimano BB-CS11, 127 mm spindle |
Shimano BB-CS11, 127 mm spindle |
Shimano BB-CS11, 127 mm spindle |
Shimano BB-CS11, 127 mm spindle |
Shimano, 127.5mm spindle |
Shimano, 127.5mm spindle |
Shimano, 127.5mm spindle |
Shimano, 127.5mm spindle |
Shimano BB-UN52, 113mm spindle |
Shimano BB-UN52, 113mm spindle |
TruVativ cartridge, 113mm spindle |
TruVativ cartridge, 113mm spindle |
TruVativ cartridge, 113mm spindle |
| BB Shell Width |
NA |
NA |
NA |
NA |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
68mm English |
NA |
NA |
NA |
| Rear Cogs |
7-speed, 11 - 28 teeth |
7-speed, 11 - 28 teeth |
7-speed, 11 - 28 teeth |
7-speed, 11 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 12 - 28 teeth |
7-speed, 11 - 28 teeth |
7-speed, 11 - 28 teeth |
8-speed, 11 - 30 teeth |
8-speed, 11 - 30 teeth |
9-speed, 11 - 32 teeth |
9-speed, 11 - 32 teeth |
9-speed, 11 - 32 teeth |
9-speed, 11 - 32 teeth |
9-speed, 11 - 32 teeth |
| Chain |
KMC Alpha 50, 1/2 x 3/32" |
KMC Alpha 50, 1/2 x 3/32" |
KMC Alpha 50, 1/2 x 3/32" |
KMC Alpha 50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC UG-50, 1/2 x 3/32" |
KMC SS-71, 1/2 x 3/32" |
KMC SS-71, 1/2 x 3/32" |
KMC, 1/2 x 3/32" |
KMC, 1/2 x 3/32" |
SRAM PC-59, 1/2 x 3/32" |
SRAM PC-59, 1/2 x 3/32" |
SRAM PC-59, 1/2 x 3/32" |
SRAM PC-59, 1/2 x 3/32" |
SRAM PC-59, 1/2 x 3/32" |
| Handlebar |
Custom |
Custom |
Custom |
Custom |
Vision above or below seat |
Vision above or below seat |
Vision above or below seat |
Vision above or below seat |
Custom |
Custom |
Custom |
Custom |
Vision Above or Below seat |
Vision Above or Below seat |
Vision Above or Below seat |
Vision Above or Below seat |
ATP |
ATP |
Vision |
Vision |
Vision |
| Headset |
1" YST 300 |
1" YST 300 |
1" YST 300 |
1" YST 300 |
1" YST 8002 |
1" YST 8002 |
1" YST 8002 |
1" YST 8002 |
1" YST 541AE |
1" YST 541AE |
1" YST 541AE |
1" YST 541AE |
1" YST 3002 |
1" YST 3002 |
1" YST 3002 |
1" YST 3002 |
1" |
1" |
1 1/8" threaded Shimano STX |
1 1/8" threaded Shimano STX |
1 1/8" threaded Shimano STX |
| Hubs |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
Shimano Alivio |
NA |
NA |
NA |
NA |
Front: aluminum quick release
Rear: Shimano RSX |
Front: aluminum quick release
Rear: Shimano RSX |
Front: aluminum quick release
Rear: Shimano RSX |
Front: aluminum quick release
Rear: Shimano RSX |
Front: aluminum, Q/R, Rear: Shimano RSX Q/R |
Front: aluminum, Q/R, Rear: Shimano RSX Q/R |
Shimano RX-100 |
Shimano RX-100 |
Shimano Tiagra |
Shimano Deore |
Shimano Deore |
Shimano Deore |
Shimano Deore |
| Rims |
Sun Metal M-L18, 32-hole |
Sun Metal M-L18, 32-hole |
Sun Metal M-L18, 32-hole |
Sun Metal M-L18, 32-hole |
Rigida AS-26, 32-hole |
Rigida AS-26, 32-hole |
Rigida AS-26, 32-hole |
Rigida AS-26, 32-hole |
Front: Alesa 319, Rear: Sun Rims L18, 32-hole |
Front: Weinmann 4019, Rear: Sun Rims L18, 32-hole |
Front: Alesa 319, Rear: Sun Rims L18, 32-hole |
Front: Weinmann 4019, Rear: Sun Rims L18, 32-hole |
32-hole |
32-hole |
Sun Rims L18, 32-hole |
Sun Rims L18, 32-hole |
Fairlane, 32-hole |
Alex DA-16, 32-hole |
Alex DA-16 |
Alex DA-16 |
Alex DA-16 |
| Tires |
Front: 16" Kenda, Rear: 26 x 1.25" Specialized Fat Boy |
Front: 16" Kenda, Rear: 26 x 1.25" Specialized Fat Boy |
Front: 20 x 1 1/8" Kenda, Rear: 26 x 1.25" Specialized Fat Boy |
Front: 20 x 1 1/8" Kenda, Rear: 26 x 1.25" Specialized Fat Boy |
Front: 16" Vision, Rear: 26 x 1.50" Specialized Fat Boy |
Front: 16" Vision, Rear: 26 x 1.50" Specialized Fat Boy |
Front: 20 x 1.50" Haro Holeshot, Rear: 26 x 1.50" Specialized Fat Boy |
Front: 20 x 1.50" Haro Holeshot, Rear: 26 x 1.50" Specialized Fat Boy |
Front: 16 x 1 3/8" Vision HP, Rear: 26 x 1.75" Specialized Fat Boy |
Front: 20 x 1.75" Haro, Rear: 26 x 1.75" Specialized Fat Boy |
Front: 16 x 1 3/8" Vision HP, Rear: 26 x 1.75" Specialized Fat Boy |
Front: 20 x 1.75" Haro, Rear: 26 x 1.75" Specialized Fat Boy |
Front: 16" or 20" Vision HP, Rear: 26" Vision HP |
Front: 16" or 20" Vision HP, Rear: 26" Vision HP |
Front: 20 x 1 3/8" Vision HP, Rear: 26 x 1.25" Vision HP |
Front: 20 x 1 3/8" Vision HP, Rear: 26 x 1.25" Vision HP |
Front: 20 x 1.35" Primo, Rear: 26 x 1.25" Primo |
Front: 20 x 1.35" Primo, Rear: 26 x 1.25" Primo |
Front: 20 x 1.35", Rear: 26 x 1.25" |
Front: 20 x 1.35", Rear: 26 x 1.25" |
Front: 20 x 1.35", Rear: 26 x 1.25" |
| Spoke Brand |
Sapim stainless steel, 2.0 mm straight gauge |
Sapim stainless steel, 2.0 mm straight gauge |
Sapim stainless steel, 2.0 mm straight gauge |
Sapim stainless steel, 2.0 mm straight gauge |
Union stainless steel, 2.0mm straight gauge |
Union stainless steel, 2.0mm straight gauge |
Union stainless steel, 2.0mm straight gauge |
Union stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
Sapim stainless steel, 2.0mm straight gauge |
DT stainless steel, 1.8mm straight gauge |
DT stainless steel, 15ga. (1.8mm) straight gauge |
Stainless steel, straight gauge |
Stainless steel, straight gauge |
Stainless steel, straight gauge |
| Spoke Nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
Brass nipples |
