n.b. - The BikePedia charts have some obvious inconsistencies (for instance there is no green color mentioned for R40 bikes at all on BP, but Hostel Shoppe's assembly guide clearly shows a green bike. Perhaps the HS photos are actually of a 2002 - 2004 R44 or R45. Also, ATP's own promo shots clearly show green R40's from 2000). But, even if not perfect, these should help buyers of used Visions determine approximate vintage of their bikes. BP is also missing 2000 and 2003 stats for ANY Vision.

Irv Jamison has supplied these general tips...a 36" wheelbase was made before 1998. Later models with 20" front wheel generally have a wheelbase of 40-42". 4 digit serial number codes: 0209 would be Feb/1999 build date. There were never any 2004's made, they were 2003's as the ATP phones were shut off and employees left in early December 2003. Bankruptcy closed in March 2004 and Volae bought the tooling and rights. Early-mid 2002 had a 1" headset Mid 2002-2003 all have 1 1/8" headset. 1996-200? Has sheet metal bracing at head tube and bent frame at head tube. Any straight frame R40 is a late 2002-2003. R40's used 2" diameter frame tube. All R40's had a choice of USS/OSS steering. Some R42's used 1.75" main tube diameter and had full suspension contrary to the released specs. R44/R45 used 1.75" main tube.

Links below have illustrative photos of each model, and the variations of each model.

R20 NEW FOR '92. GEARING: 25-125 gear inches. WEIGHT: under 30 lbs. WHEELBASE: 38" WEIGHT DISTRIBUTION: (approx.) 55% front, 45% rear. FRAME: TIG welded Chro-moly, one size, adjustable boom. STEERING: underseat, connected to fork. DRIVETRAIN: dual chain, intermediate idler, 21 speed index shifting, full Suntour XT-LTD component group with cantilever brakes. WHEELS: 20 x 1.75 100 psi ACS front and rear. PAINT: powdercoat aqua. SEAT: suspended mesh. COST: $1350.
R30
Metro

read more about the R30 series

Read Recumbent Cyclist News review of the R32 from 1999 - MWB revival - the Vision R32
1999 RCN
R32 review

(pdf)

read more about the R40
R42

Same 2" diam. maintube as the R40, but with upgraded components.

R44

1.75" diam. maintube, with the same standard components as the R40.

R45

Same 1.75" diam. maintube as the R44, but with upgraded components.

read more about the R50

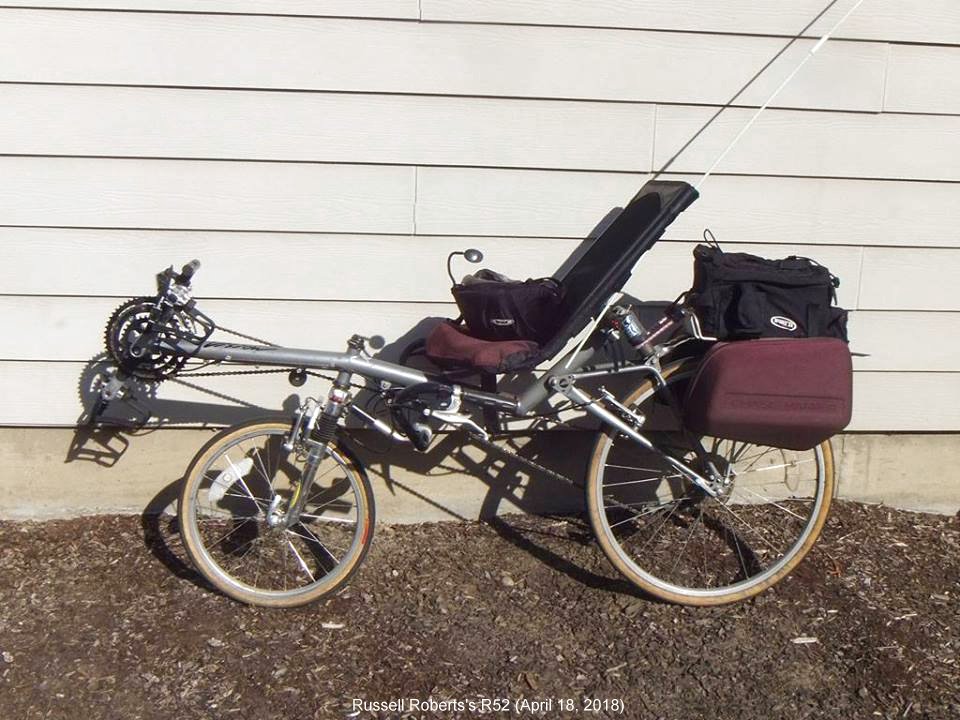

R52

Same frame as the R50, but with upgraded components.

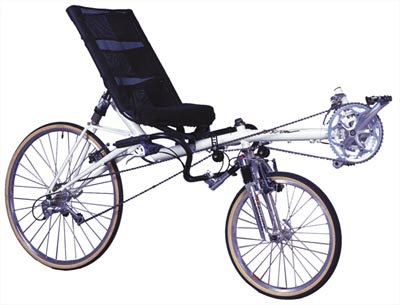

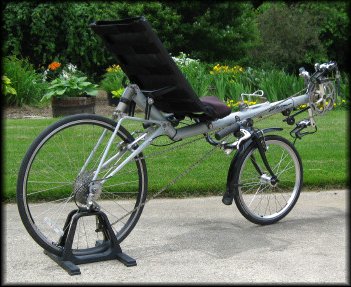

R54

Same frame as the R50, but with upgraded components.

read more about the R60 series
R65

Same frame as the R64, but with upgraded components.

R68

Titanium frame, with upgraded components.

The base version of the ATP tandem.

The titanium version of the ATP tandem, with upgraded components.

read more about the V70

read more about the V72
