From Recumbent Cyclist 1992 buyer's Guide: "The all new model R-20."
Advanced Transportation Products 550 3rd Ave. N. Edmonds, WA 98020
Phone (206) 771-3719   Contact: Joel Smith

STYLE: SWB WEIGHT: under 30 lbs. WHEELBASE: 38" WEIGHT DISTRIBUTION: (approx.) 55% front, 45% rear. FRAME: TIG welded Chro-moly, one size, adjustable boom. STEERING: underseat, connected to fork. DRIVETRAIN: dual chain, intermediate idler, 21 speed index shifting, full Suntour XT-LTD component group with cantilever brakes. WHEELS: 20 x 1.75 100 psi ACS front and rear. PAINT: powdercoat aqua. SEAT: suspended mesh. COST: $1350, framesets are also available. NEW FOR '92: The all new ATP R-20 is a new and different SWB design. The Hyperdrive drivetrain takes care of any gearing problems commonly associated with bikes using two 20" wheels. The standard gearing is 25- 125 gear inches. Look for a full test in the next RCN.

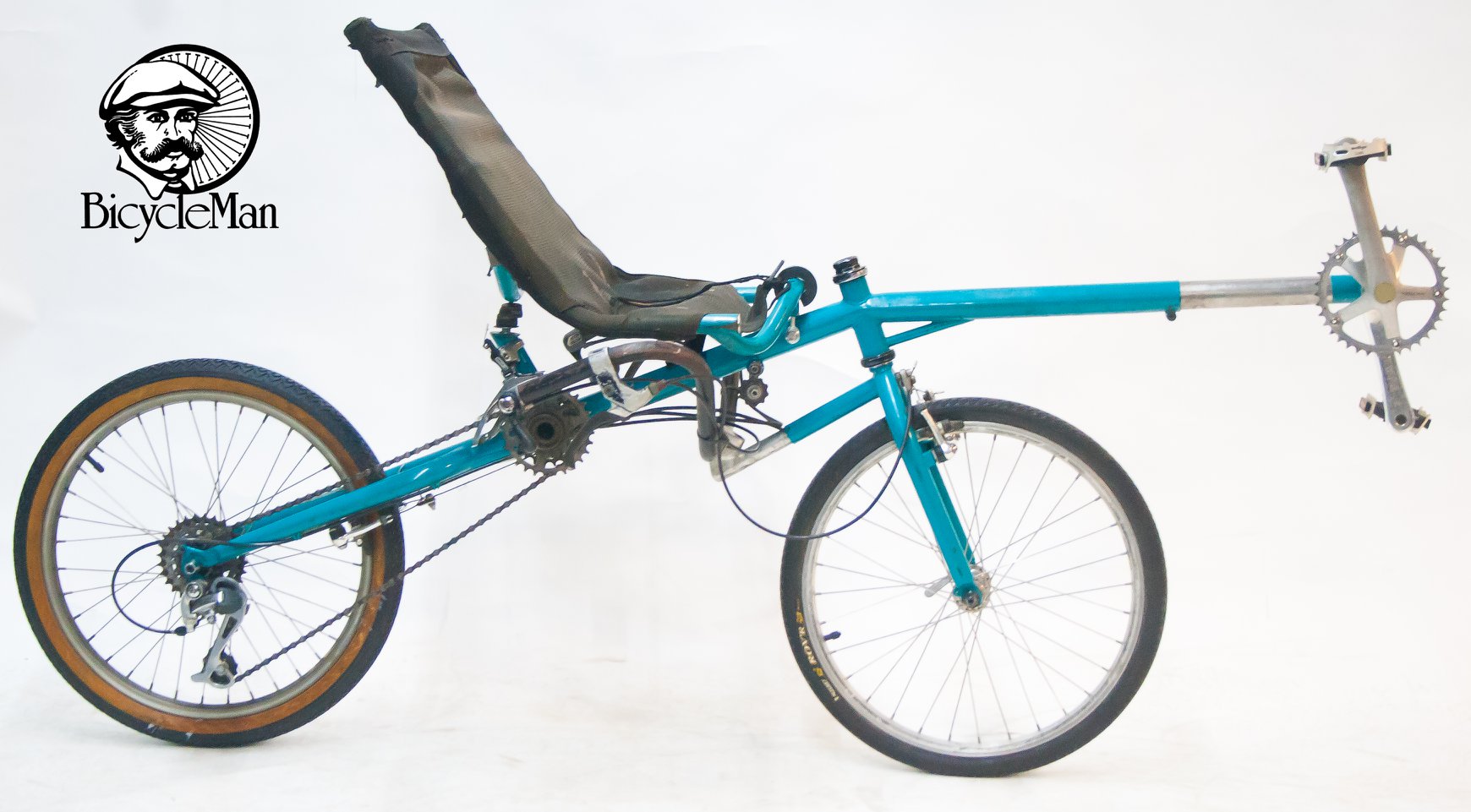

Image courtesy Bicycle Man https://bicycleman.com/history_collection/atp-vision-r-40/

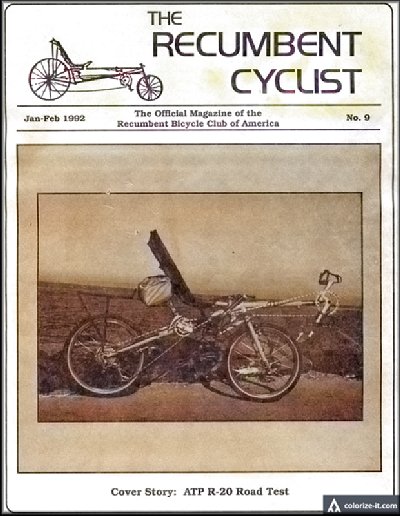

The Recumbent Cyclist
No. 9, Jan - Feb. 1992

Cover Story:
ATP R20 Road Test




7 page excerpt from
RCN #9 - Jan - Feb. 1992.

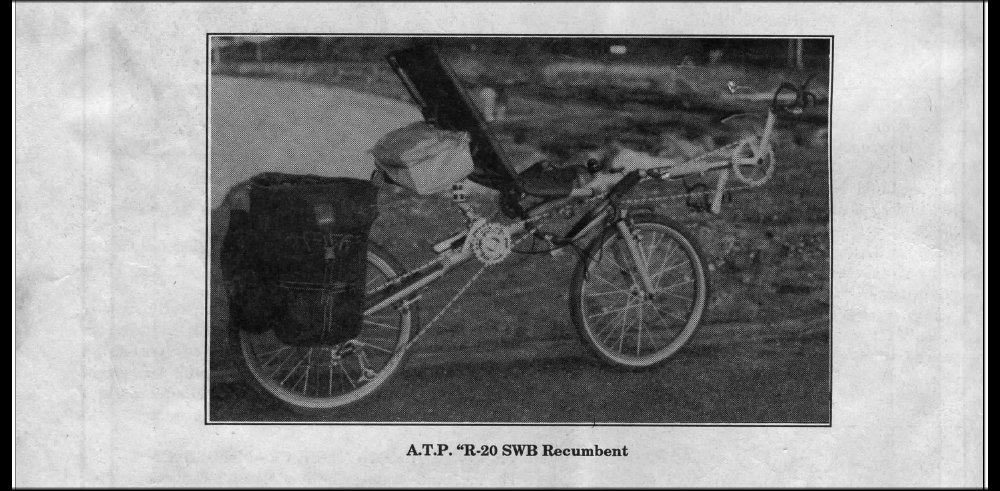

R20 ad from Recumbent Cyclist Magazine RCM #12, Aug - Sept - Oct 1992, page 10.



Richard Freytag and friends go European cyclo-touring on an ATP R20 and other bents 1993 - 1994
Tour Des Fjords 93: 1100 km (680 miles) of touring on recumbents from Bergen in Norway to Motala in Sweden, late May - early June 1993.


Tour De Switzerland 94: A recumbent tour around Switzerland on the outside.

Richard Freytag commented on the R20 (Jun 9, 2011, 11:13 PM)... Well the first thing I'd say is that is breaks down into little pieces small enough to fit into a standard hard-case bike box. Helped a lot in my adventures. The mid-gearing meant I could add a front ring and get to a gear low enough to pull tree stumps or bike uphill slower than most people when they are standing in one place (ok I exaggerate a little). The short wheelbase was helpful in staying upright when going that slow. I'm 6'3" and a very short stop would pitch me forward and I would be standing. I think in many years of biking that happened 4 times. On tours I'd load up the back to ridiculous levels and things evened out. It is the most disagreeable blue-green color however. Must have been found in the discount bin. The seat webbing had to be completely reworked. But for a early model it has held up pretty well. It is not a fast bike because you lose 2% instead of 1% due to the extra mid-gears. But when on a long ride it didn't matter. The cushion under the seatback (two 1" thich rubber grommets), probably soaked up a little more energy too. The seat was very comfortable. The fact that it hit me below the scapula meant that I could brace seat-back to pedals when going over particularly big bumps and the cushion under the seat back and my legs kept me from getting hammered in the backside. I really liked the underseat steering as they would take the blow if for some reason I did go down.

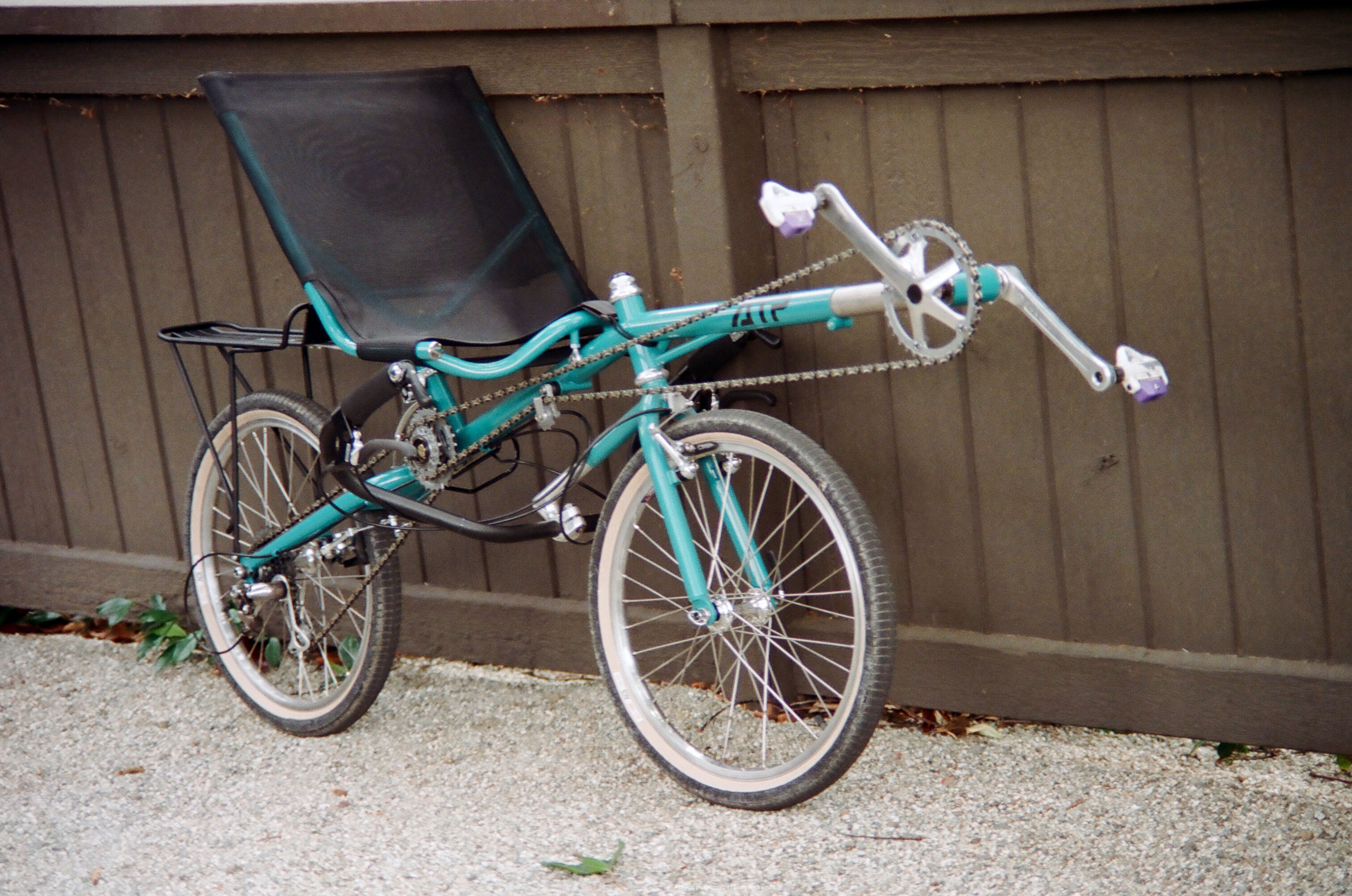

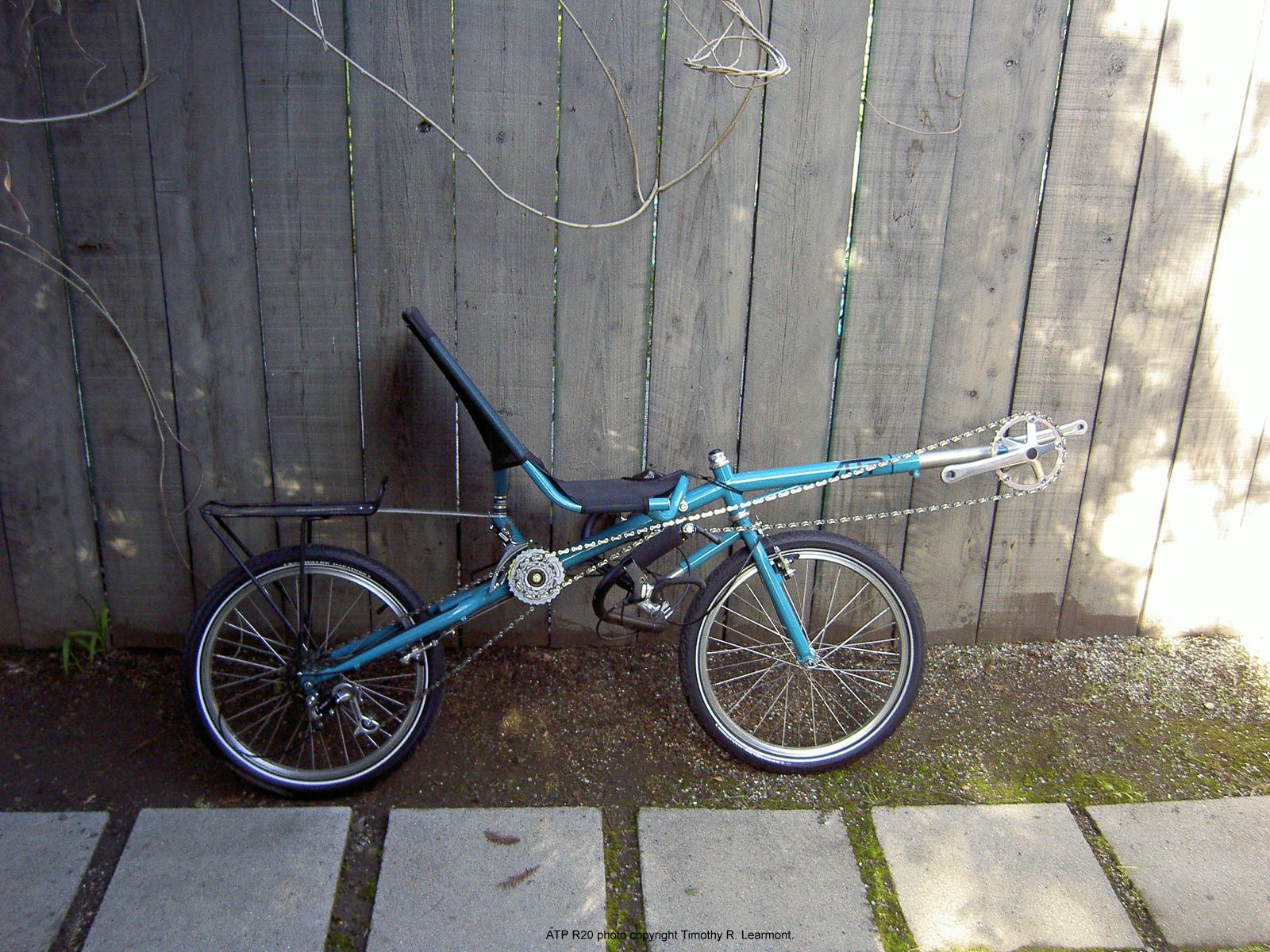

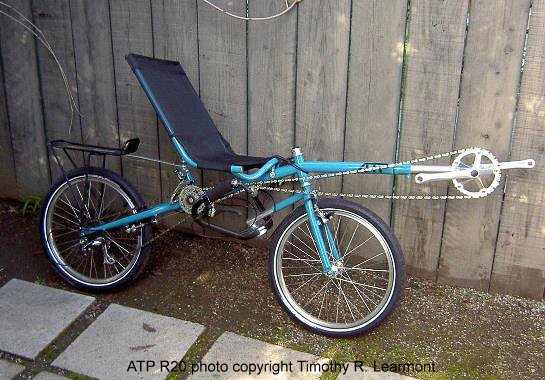

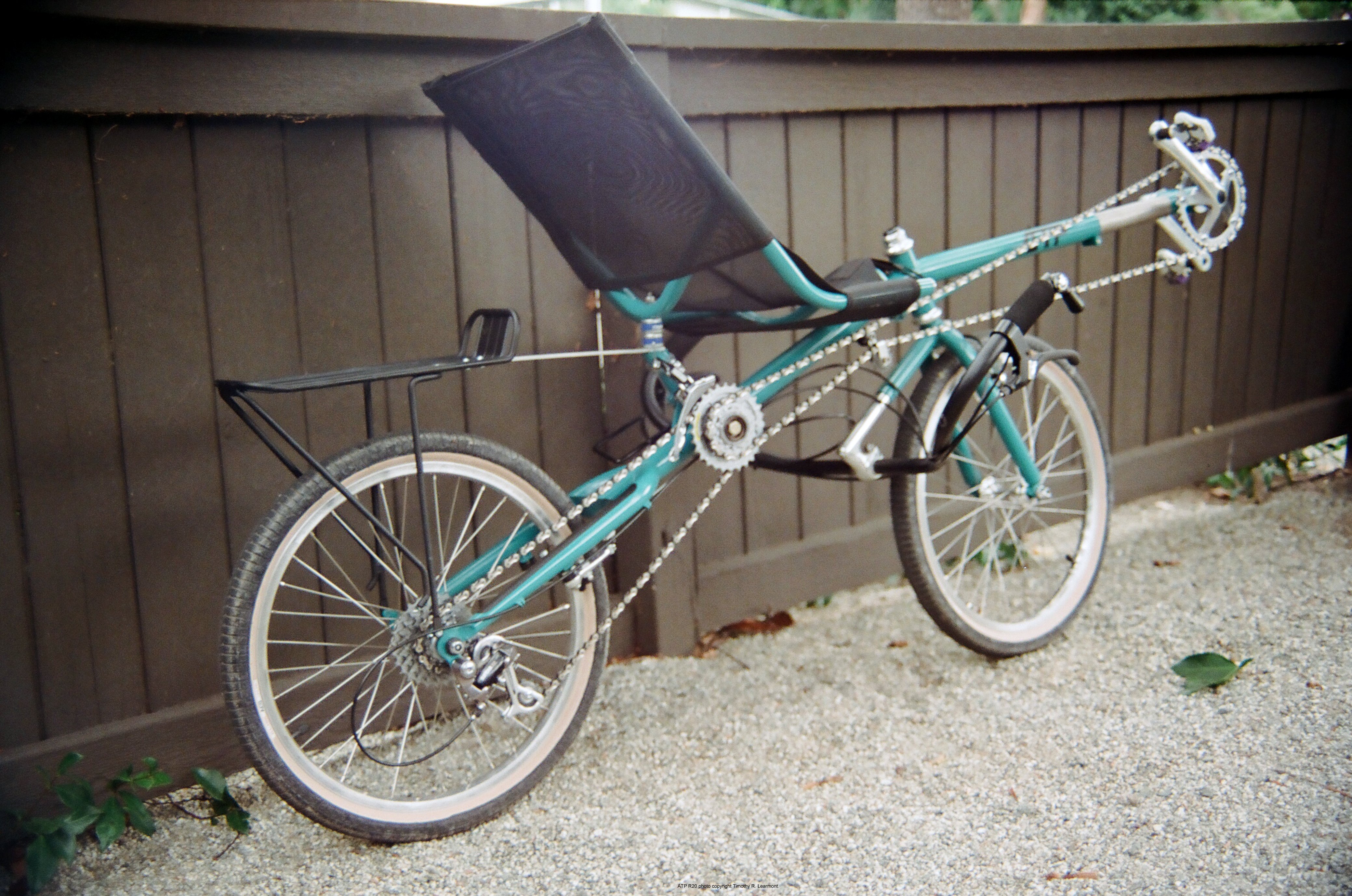

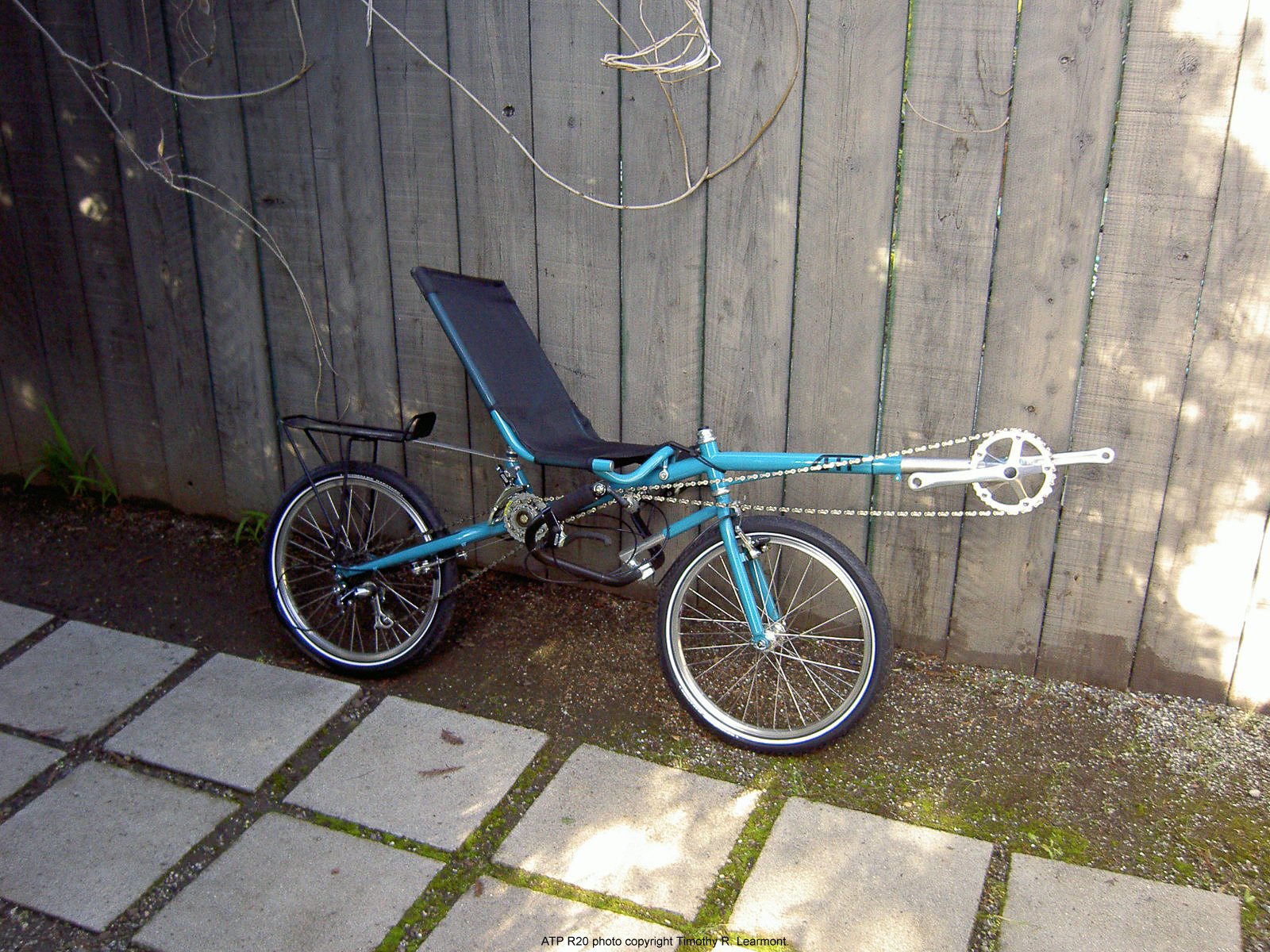

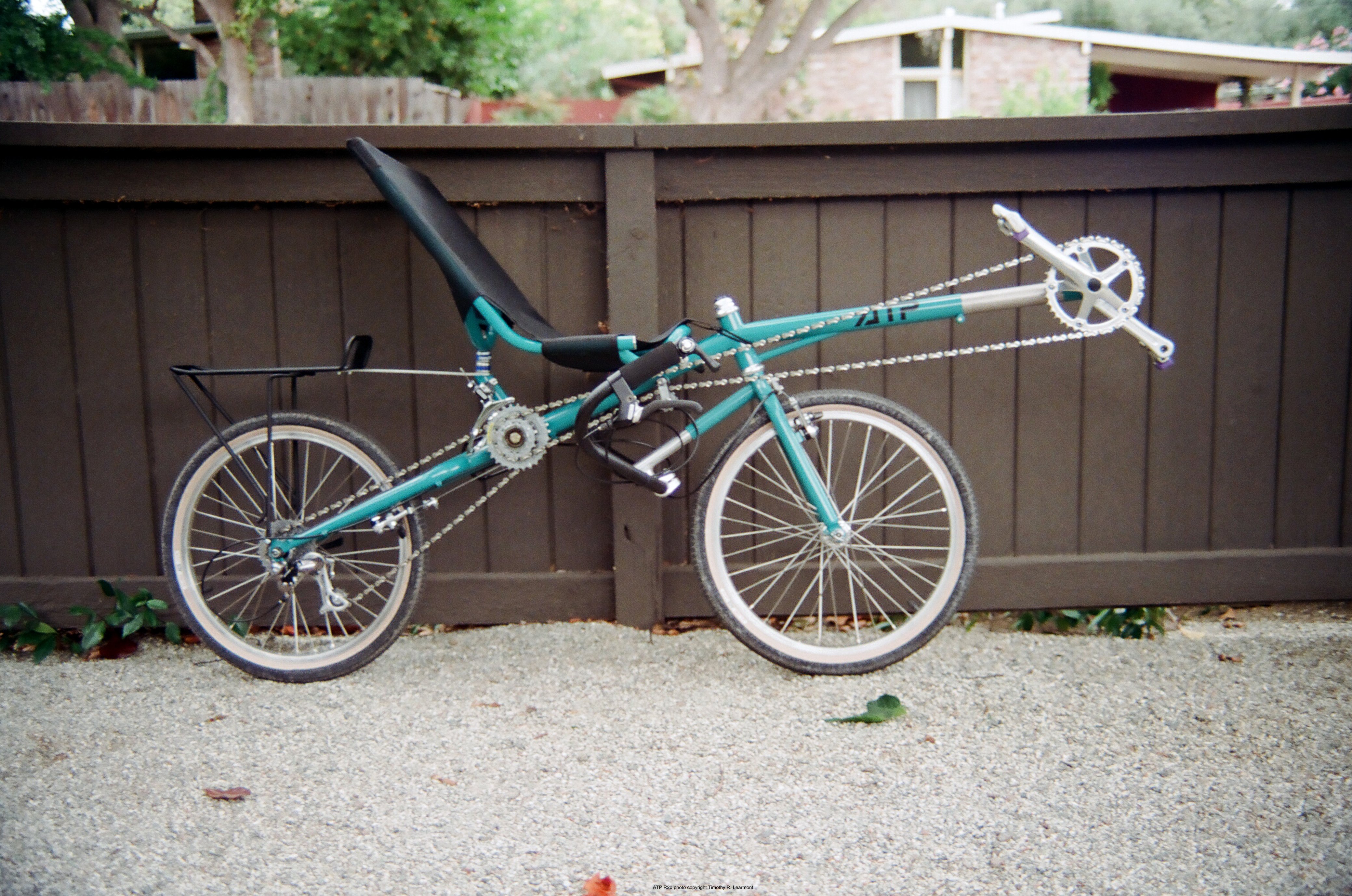

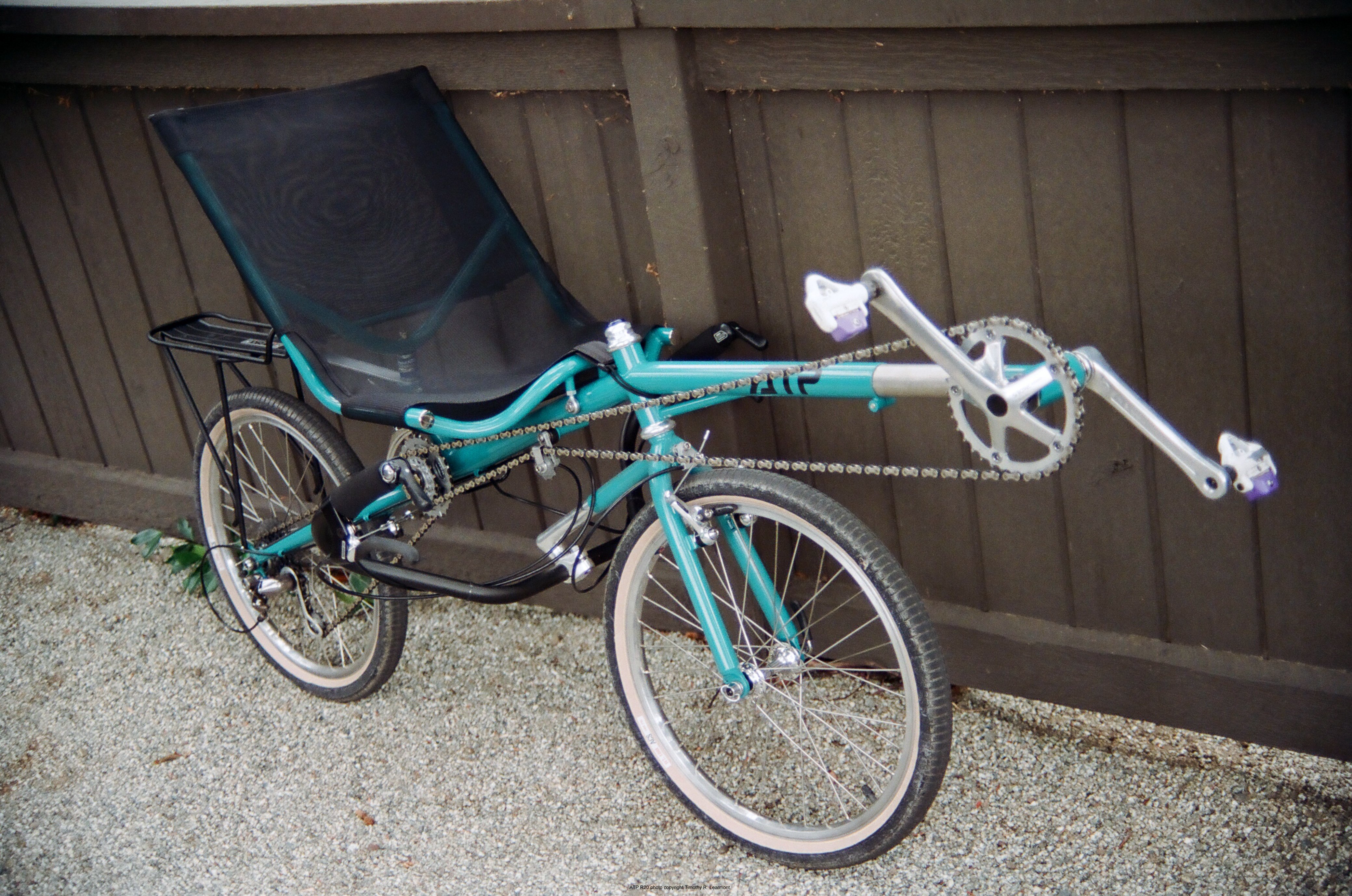

Photos courtesy (and copyrighted by) Timothy R. Learmont.

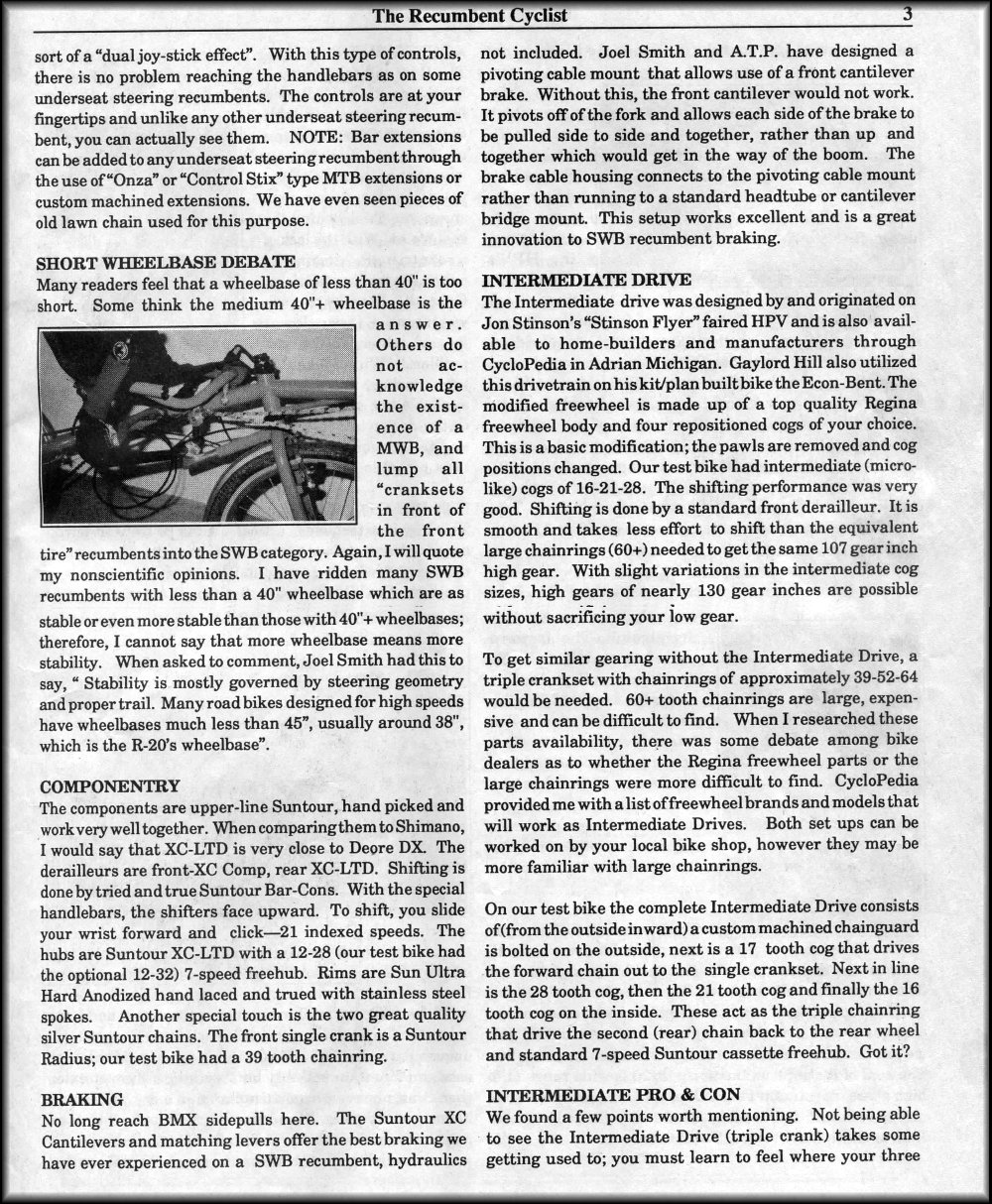

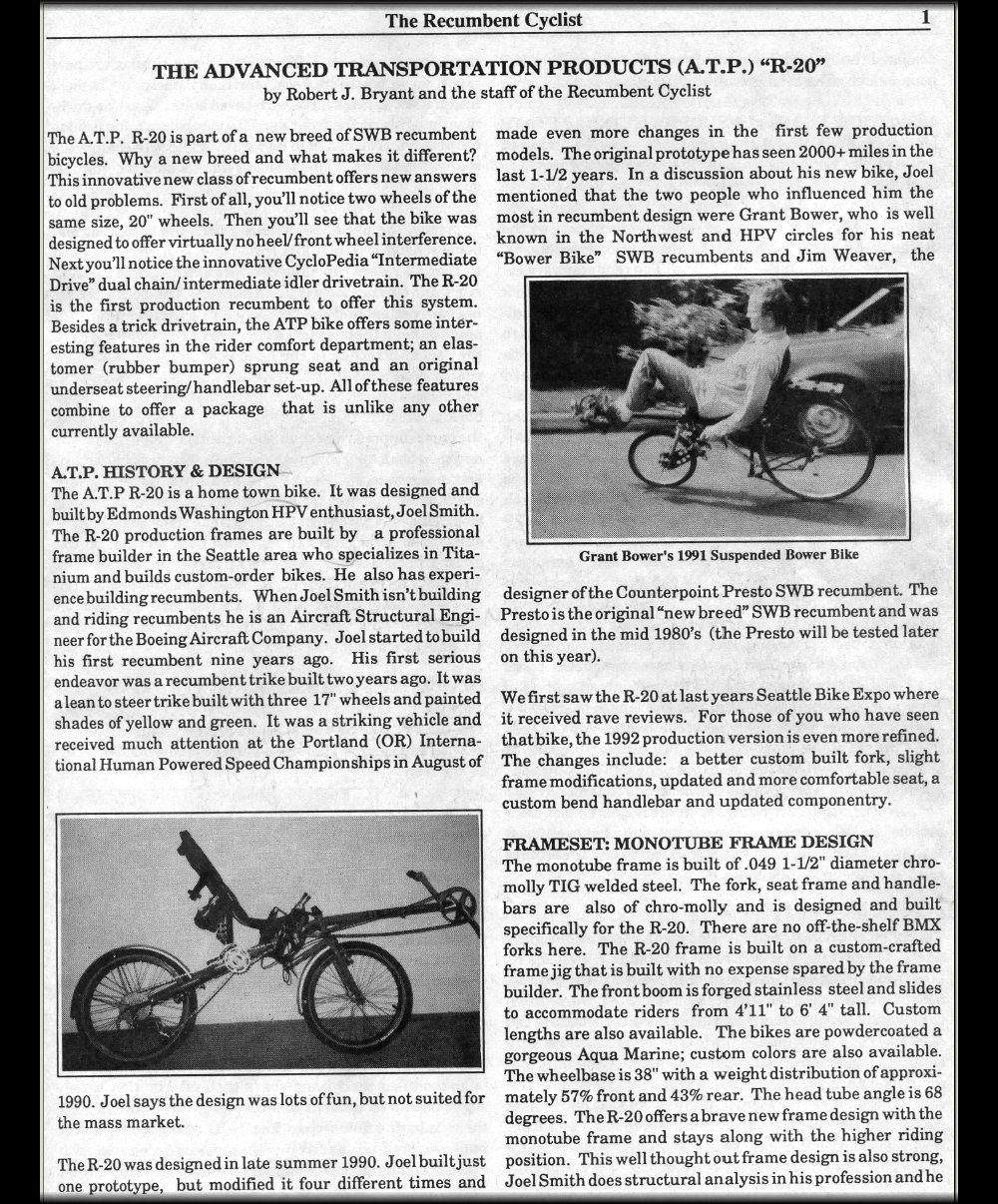

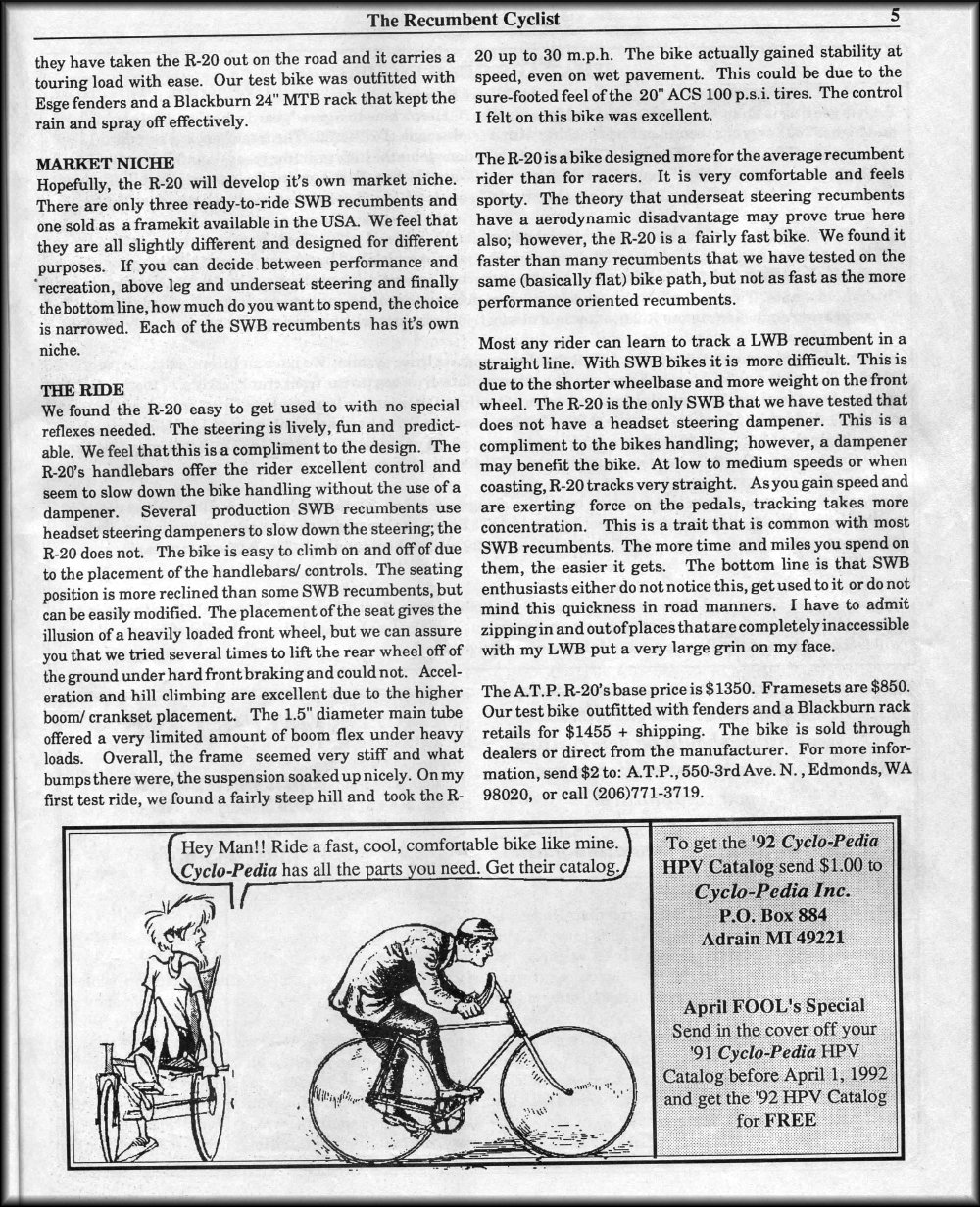

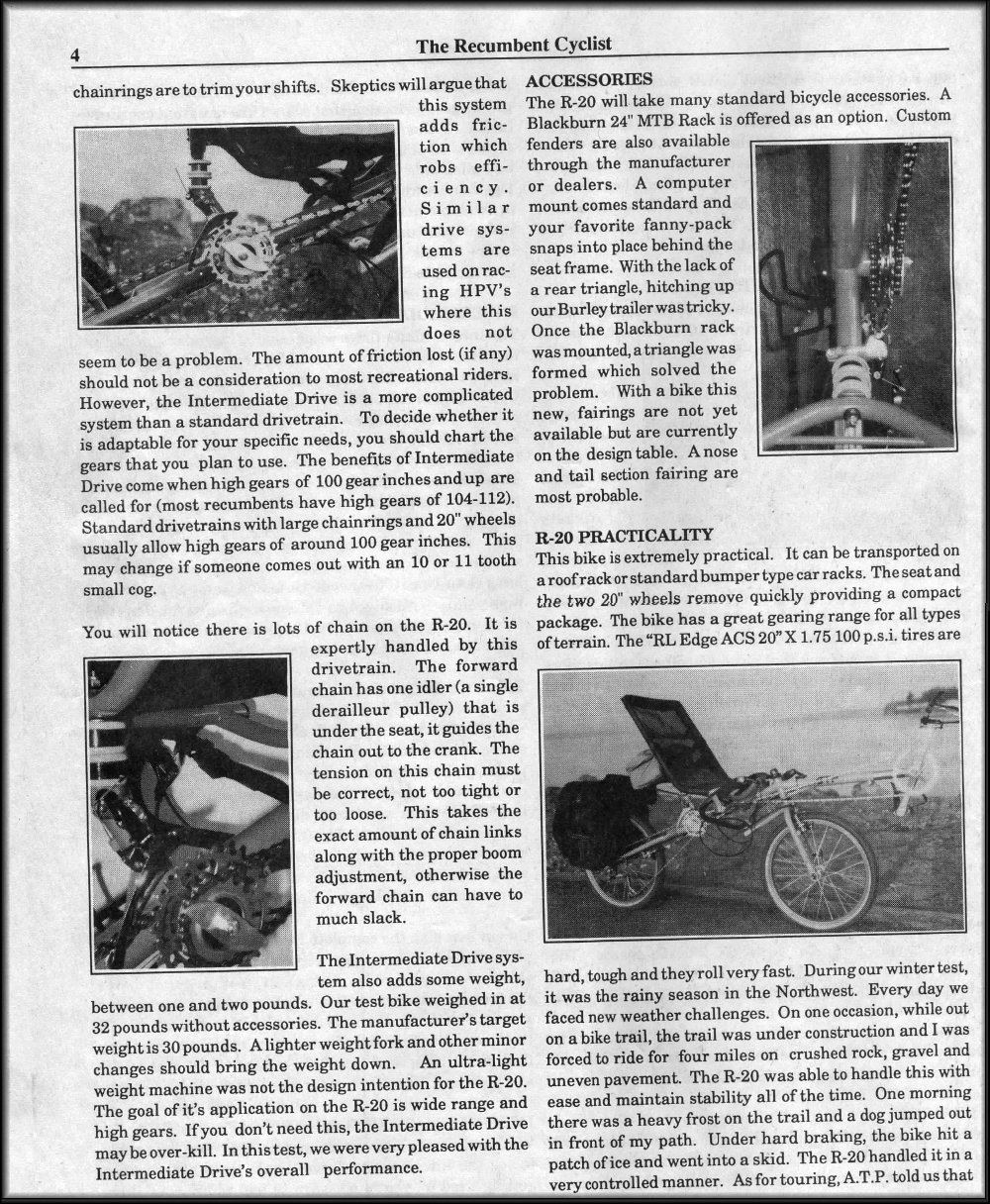

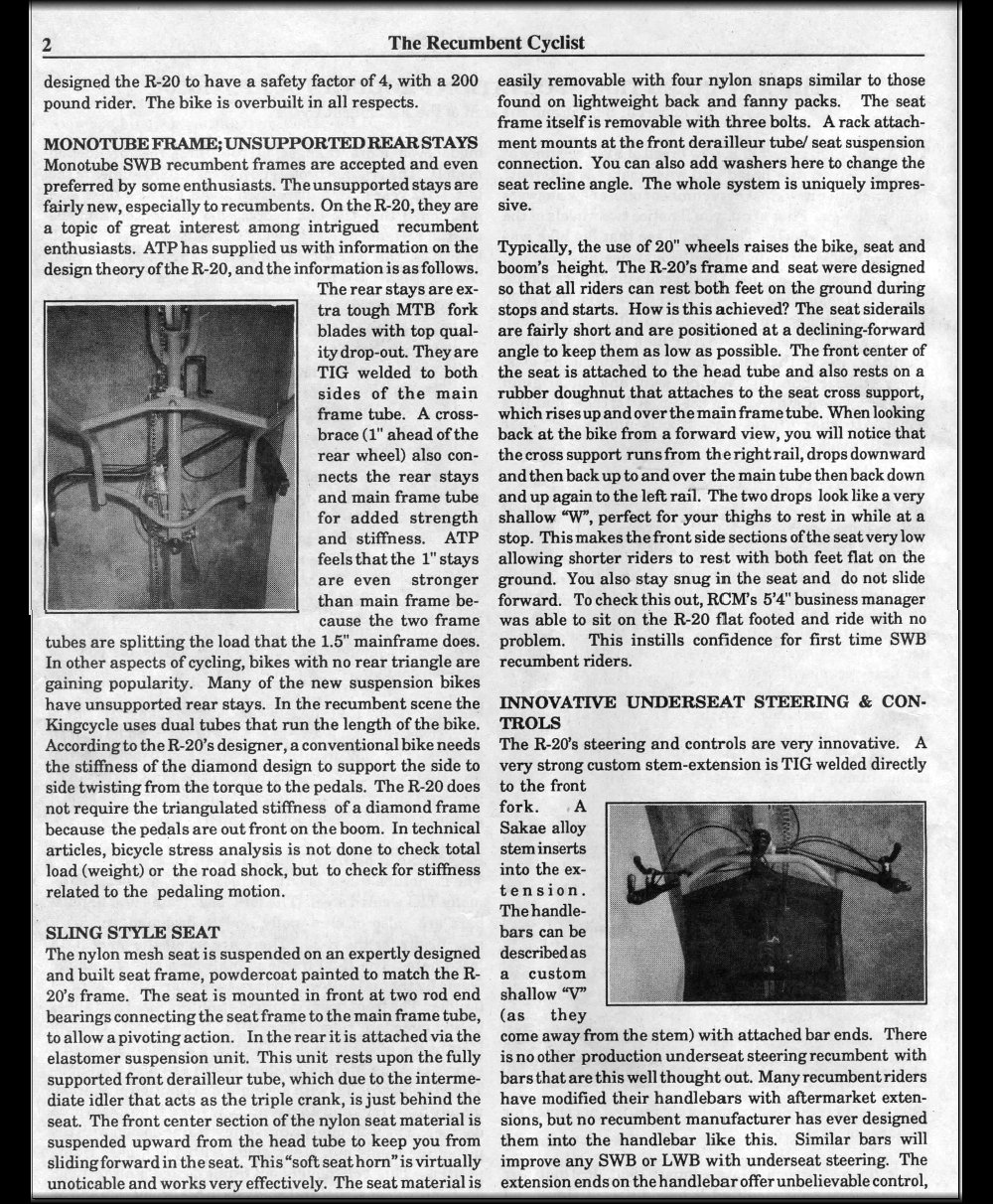

Cover story review of the R-20 from The Recumbent Cyclist issue #9
courtesy Robert J. Bryant, editor
